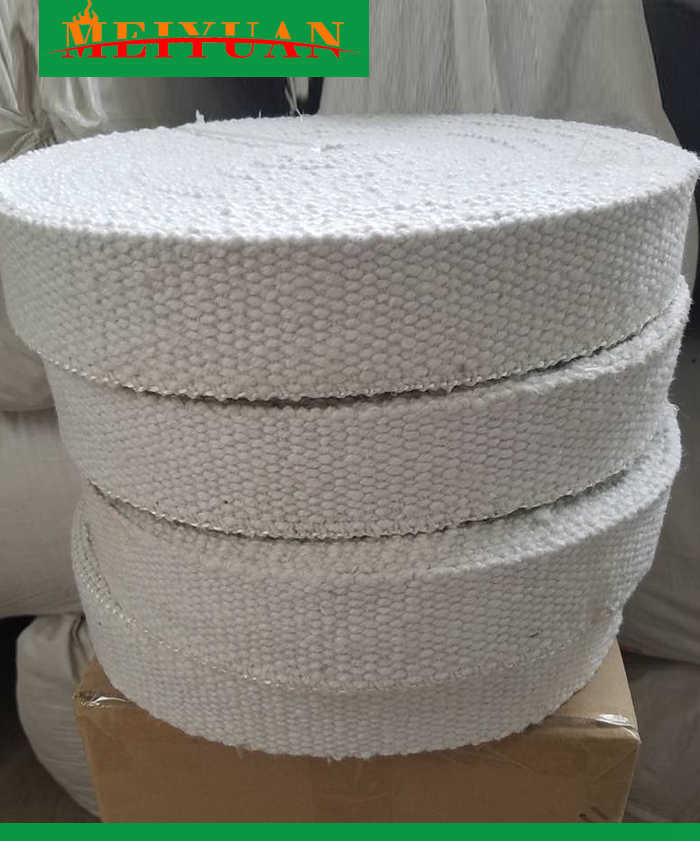

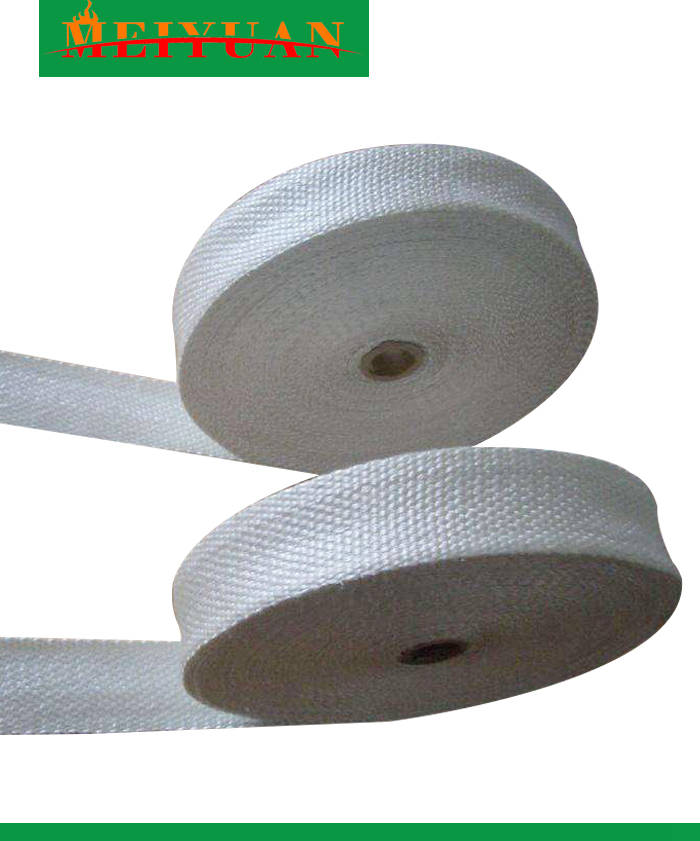

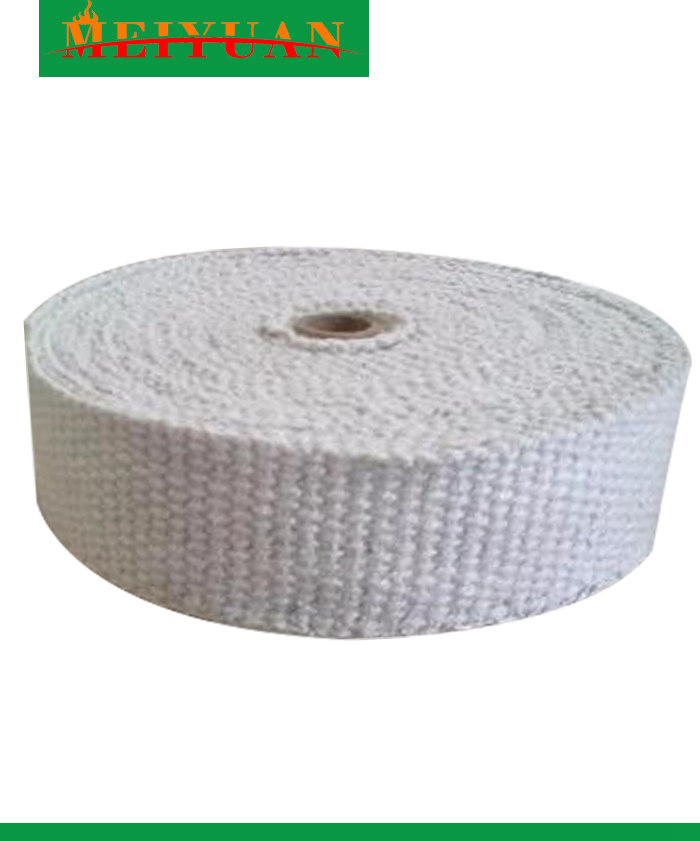

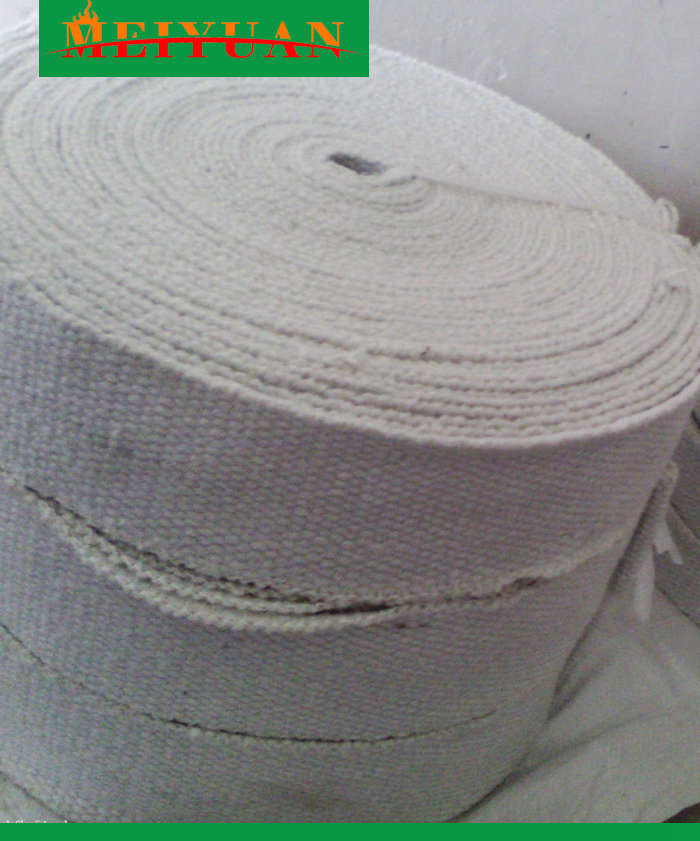

MEIYUAN Ceramic fiber tape is a kind of ceramic fiber textile made from Ceramic Fiber Yarn,reinforced with Glassfiber or SS WIRES.
Products Details
Product Introduction:
MEIYUAN Ceramic fiber tape is a kind of ceramic fiber textile made from Ceramic Fiber Yarn,reinforced with Glassfiber or SS WIRES.
Characteristics:
Low thermal conductivity
Resistance to high temperature and chemical attack
High mechanical strength
Good thermal shock resistance
Excellent insulating performance
Excellent tensile performance
Asbestos free
Environmental protection
Application:
Industrial thermal insulation
pipe and cable insulation coating
exhaust piping insulation coating
bolt flange connection
thermal radiation shielding
high temperature furnace door curtain.
Technical data and specification
| MEIYUAN Ceramic Fiber Tape | ||
| Classification Temperature (℃) | 1260 | |
| Name | Glass Filament Reinforced Tape | Inconel Wire Reinforced Tape |
| Density（kg/m3） | 500 | |
| Long-term Operation Temp | 550℃ | 1050℃ |
| Water Content （%） | ≤2 | |
| Organic Content（%） | ≤15 | |
| Shrinkage at 982℃ （%） | -1 | |
| Packing of ceramic rope | Braided Bag | |
| Specification (T*W*L) | ||
| 2mm x 20mm x 30m/ 3mm x 20mm x 30m/ 2mm x 30mm x 30m/ 3mm x 30mm x 30m/ 2mm x 40mm x 30m/ 3mm x 40mm x 30m/ 2mm x 50mm x 30m/ 3mm x 50mm x 30m/ 2mm x 60 mm x 30m/ 3mm x 60 mm x 30m/ 2mm x 75 mm x 30m/ 3mm x 75 mm x 30m/ 2mm x 80 mm x 30m/ 3mm x 80 mm x 30m/ 2mm x 100 mm x 30m/ 3mm x 100 mm x 30m/ 2mm x 150 mm x 30m/ 3mm x 150 mm x 30m/ | ||
Why choose us?
1. Self owned raw material base, material inspection before entering factory, computer-controlled ingredient proportion system, strictly control raw material purity.
2. Ceramic Fiber tape offers such characteristics as pure white and stable quality.
3. Thickness varies from 2-6mm, width from 20mm to 150mm.
